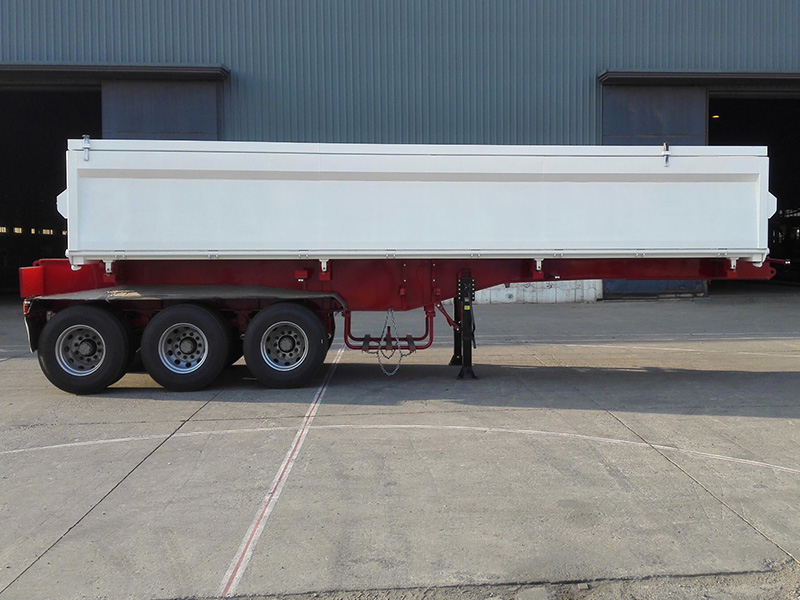

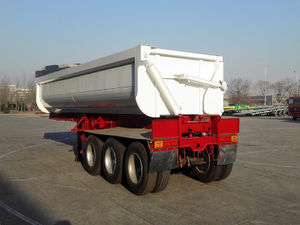

The Custom Dump Semi Trailer is designed for efficient and clean unloading. It is perfect for transporting vehicles and various materials such as sand, gravel, and grain.
The trailer's length can be selected between 10000mm to 15000mm. This gives flexibility to meet different transportation needs. The height ranges from 2500mm to 3000mm, offering suitable clearance for various types of cargo.
The width of the trailer is 2500mm, ensuring stability during transport. It provides an inside cubage of 30-50 cubic meters, which accommodates large volumes of goods.
With a load capacity between 30000 kgs to 60000 kgs, this trailer can handle heavy loads with ease. The axle options range from 13 tons to 16 tons, allowing for customization based on transport requirements.
The suspension system is available in leaf spring or air suspension, offering options based on ride comfort and weight distribution. Built with steel, the trailer ensures durability and long-lasting performance.
The trailer features heavy-duty legs rated at 28 tons for stable support during loading and unloading. Traction pins are available in 2 inches (50mm) or 3.5 inches (90mm) for secure attachment to towing vehicles.
| Parameter | Value |
|---|---|
| Length | 10000-15000mm (optional) |
| Height | 2500-3000mm (optional) |
| Width | 2500mm (optional) |
| Inside Cubage | 30-50 cubic meters (optional) |
| Capacity Load | 30000 Kgs - 60000 Kgs |
| Axle | 13 tons, 16 tons (optional) |
| Suspension | Leaf spring or air suspension |
| Type | Semi Trailer |
| Material | Steel |
| Function | Sand, gravel, grain transport |
| Suspension Type | Mechanical suspension |
| Color | Customer's choice |
| Legs | 28-ton heavy-duty legs |
| Traction Pin | 2 inches (50mm) or 3.5 inches (90mm) |
Versatile Cargo Transport
Suitable for transporting ore, sand, stone, coal, bauxite, grain, and other goods.
Adaptability to Road Conditions
Designed for use in Southeast Asia, East Africa, West Africa, the Middle East, Australia, and Europe.
Torsion Resistance & Durability
Offers strong torsion resistance, cross-country performance, and long-lasting durability.
European Design
Features a U-shaped streamlined body for an aesthetically pleasing appearance.
High-Strength and Wear-Resistant Steel
Built with advanced steel materials for improved performance and longer service life.
Optimized Frame and Body
Balances tare weight and payload capacity for maximum efficiency in transportation.
Improved Performance
Dual verification of finite element analysis and all-weather road tests ensures optimal performance.
Lightweight Yet Strong
High-strength steel reduces the weight of the frame and body, maintaining strength.
Bulk Cargo Transport
Primarily used for transporting soil, ore, construction materials, and other bulk goods.
Efficient Unloading
The hydraulic tipping system allows for self-unloading, saving time and labor.
Customizable Options
Available in various configurations to meet specific transportation needs.
What is the maximum load capacity of the Custom Dump Semi Trailer?
The Custom Dump Semi Trailer has a load capacity ranging from 30,000 kg to 60,000 kg, making it suitable for heavy-duty transportation needs.
What materials can be transported using the Custom Dump Semi Trailer?
This trailer is ideal for transporting various goods, including ore, sand, stone, coal, bauxite, and grain.
What is the suspension type used in the Custom Dump Semi Trailer?
The trailer is equipped with a leaf spring suspension system or an air suspension system, depending on customer preference.
Can the Custom Dump Semi Trailer be customized to meet specific transportation needs?
Yes, we offer customizable options for the trailer, including axle configurations, wheel sizes, and color choices.
What type of road conditions is the Custom Dump Semi Trailer suitable for?
This trailer is designed for use on various road conditions including those in Southeast Asia, Africa, the Middle East, and Europe.
