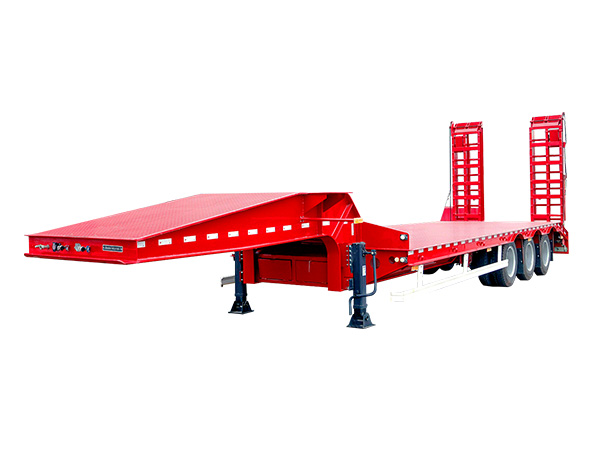

The Hydraulic Lowbed Semi Trailers are designed for heavy-duty mining machinery transportation. These trailers are highly customizable to meet your specific needs.
They are available in lengths ranging from 40 to 60 feet (12.2 to 18.3 meters), offering versatility for different transport requirements. The height from the ground to the top of the trailer deck is around 1 to 1.5 feet (0.3 to 0.46 meters), providing a low platform for stable loading and unloading.
These trailers have a width of around 8 to 9 feet (2.44 to 2.74 meters), accommodating large equipment. The capacity load ranges from 40,000 to 100,000 pounds (18,144 to 45,359 kilograms), and can be customized based on your needs.
You can choose from 13 tons or 16 tons axles, with other axle options available. For a smooth ride, the trailers come with a leaf spring suspension system or an air suspension, depending on your preference.
The frame is constructed with high-quality steel, ensuring durability and performance even in challenging environments. These trailers are ideal for heavy machinery transportation, including mining and construction equipment.
Customizable features include size, color, and axle configurations, allowing you to tailor the trailer to your specific needs.
| Parameter | Value |
|---|---|
| Length | 40 to 60 feet (12.2 to 18.3 meters) optional |
| Height | 1 to 1.5 feet (0.3 to 0.46 meters) from the ground |
| Width | 8 to 9 feet (2.44 to 2.74 meters) |
| Capacity Load | 40,000 to 100,000 pounds (18,144 to 45,359 kg) or more |
| Axle | 13 tons, 16 tons or other optional |
| Suspension | Leaf spring or air suspension |
| Size | Customizable |
| Max Load Weight | 60T/80T/100T/150T or as per buyer's request |
| Color | Customizable |
| Steel Leaf Spring | 90(W)mm13/16 thickness mm10 layers |
| Suspension System | Mechanical or air suspension |
Heavy Load Capacity:
The 3-axle semi-trailer can carry up to 100 tons. Customization is available based on customer needs.
Durable Construction:
Built with high-quality steel, including Q345B/T700 steel for the main beam and 90mm thick steel leaf springs, ensuring durability and long-lasting performance.
Customizable Options:
The trailer's dimensions can be adjusted to 11,500/12,500/13,000mm (length) x 3,000mm (width). Custom colors are also available.
Advanced Suspension System:
Choose between mechanical suspension or air suspension for a smooth ride and enhanced stability during transport.
Reliable Braking System:
Equipped with a dependable relay valve braking system, ensuring safe and effective braking under various conditions.
Heavy Vehicles:
Transporting heavy vehicles like tractors, buses, and specialized vehicles.
Railroad Equipment:
Suitable for transporting railway vehicles and related machinery.
Mining Machinery:
Designed for transporting heavy mining machinery, including crushers and excavators.
Forestry Machinery:
Ideal for carrying forestry equipment like tree harvesters and log loaders.
Construction Machinery:
Perfect for moving construction machines such as excavators, bulldozers, loaders, pavers, and cranes.
1. What is the maximum load capacity of your hydraulic lowbed semi trailers?
The hydraulic lowbed semi trailers have a maximum load capacity ranging from 60 tons to 150 tons, depending on customer requirements.
2. Can the trailer size be customized?
Yes, the size of the trailer can be customized to meet specific needs, including lengths of 11,500mm, 12,500mm, or 13,000mm, and a width of 3,000mm.
3. What materials are used in the construction of the trailer?
Our trailers are built with high-quality steel, including Q345B/T700 steel for the main beam, ensuring durability and longevity.
4. What suspension systems are available?
We offer mechanical suspension or air suspension systems, depending on your preference for smooth operation and stability during transport.
5. Is the trailer designed for specific types of machinery?
Yes, our hydraulic lowbed semi trailers are ideal for transporting heavy-duty machinery such as mining machinery, construction vehicles, and other large equipment.
