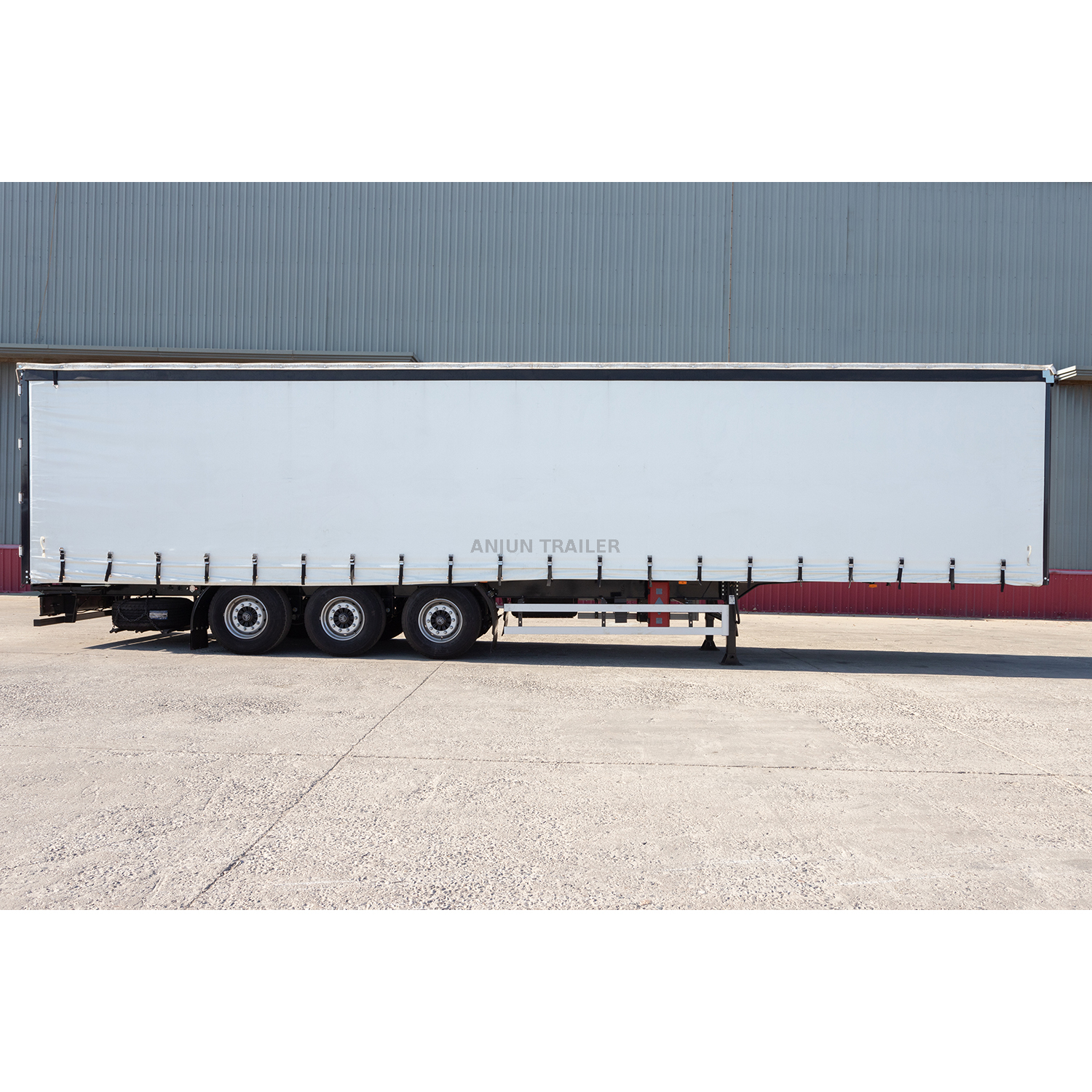

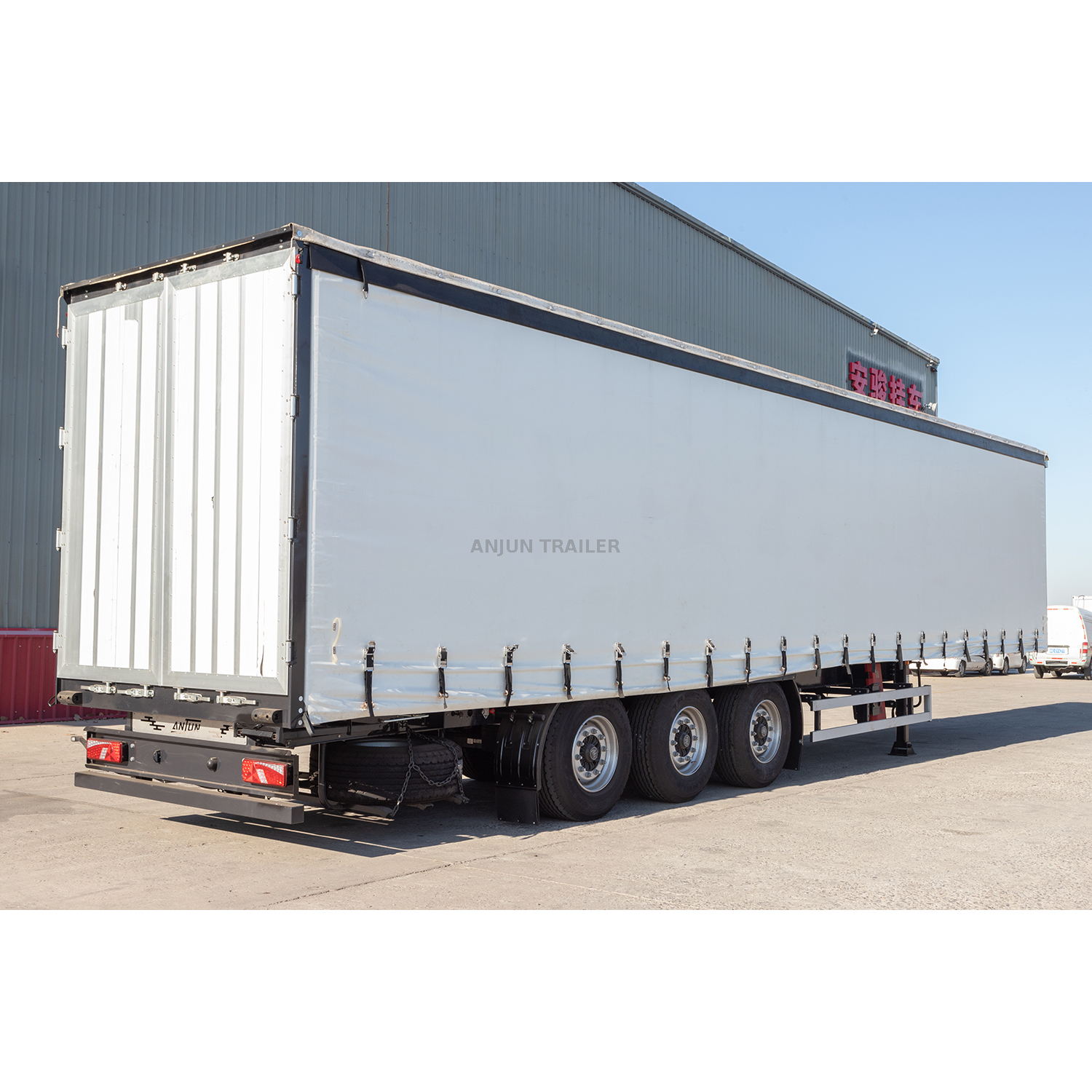

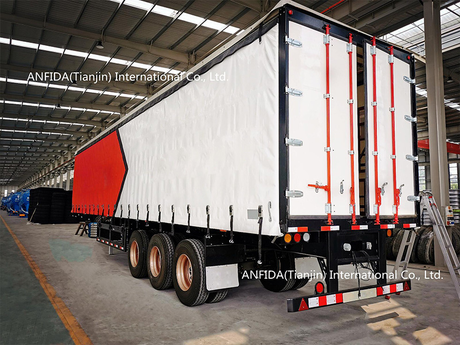

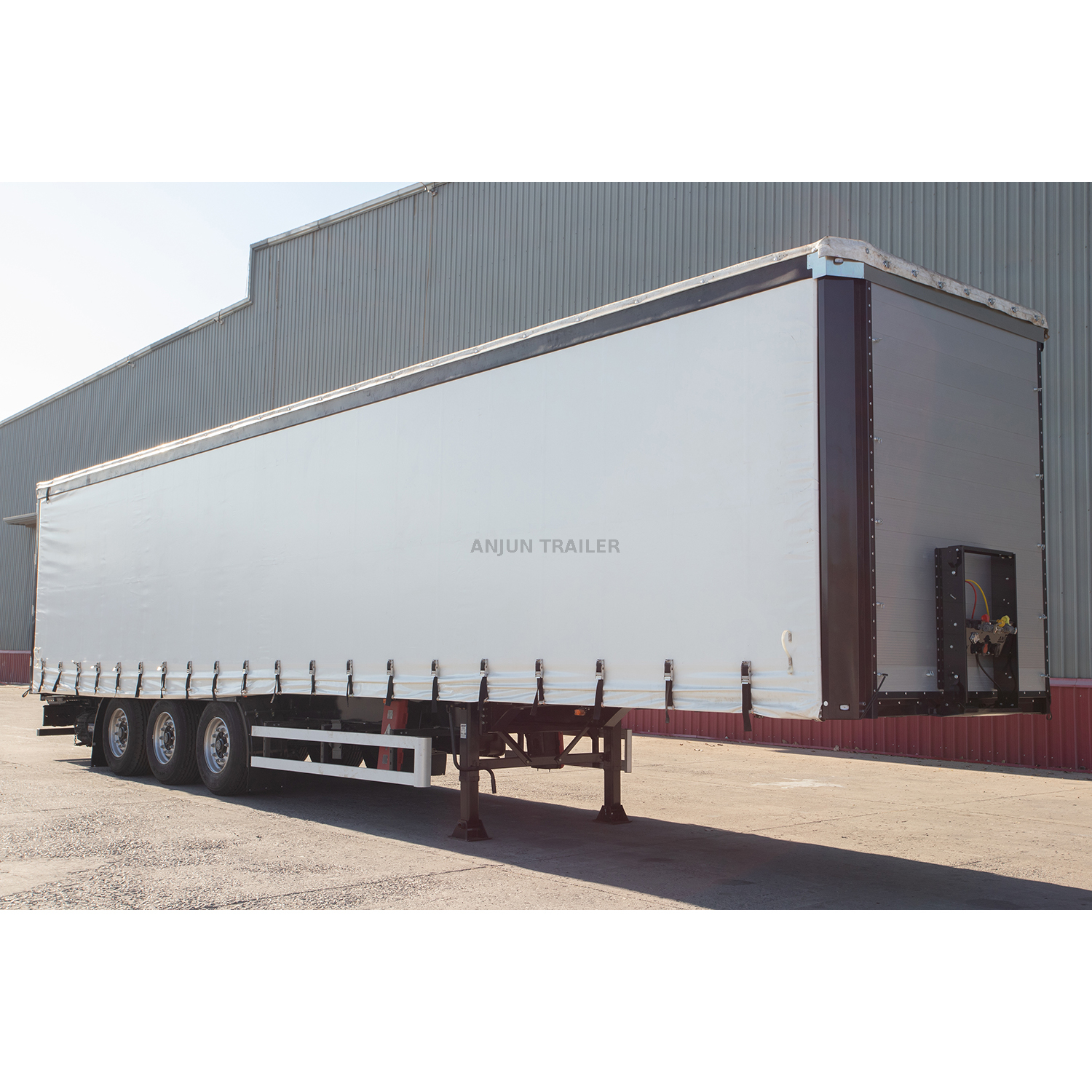

1. Product Name: Side Curtain Grid Semi-Trailer
2. The exterior dimensions are as follows:
Width: 2.55 meters,
Height: 4 meters,
Please note that these dimensions are described according to the specific definitions provided, with length and width referring to the distance between the outermost, non-removable metal components of the vehicle, and the height described as the height relevant to the type of vehicle mentioned.
3. Longitudinal Beam Height (mm): 370 mm, Upper Side Plate: 10 mm, Center Plate: 6 mm, Lower Side Plate: 10 mm
4. The chassis is constructed of high-strength S700 steel, forming a welded steel structure.
5. Suspension System: BPW Air Suspension
6. Axle Type/Quantity: BPW Disc Brake Axles 11.5T Lightweight Round Axles * 3, with the first axle being liftable.
7. Towing Pin: 2-inch Towing Pin according to SAE standard.
8. Tire Specifications/Quantity:Model: 385/65R22.5,Quantity: 7 tires.Steel wheels.
9. Braking System: Dual-circuit, compliant with ADR standards, EBS with an electronic stability system （Wabco）
10. Electrical System: 24V electrical system according to ECE standards.
(1)Brake lights, position lights, and nearside lights on the shelf/legs (LED)
(2)Reverse lights, fog lights, turn signal lights (bulb)
(3)License plate illumination (LED)
(4)Diode marker lights (LED)
(5)Side marker lights (LED)
11. Landing Gear :Jost 28 External Landing Gear
